UCI portable hardness testers

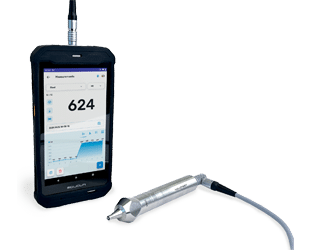

UCI hardness tester Solidur

imm port ucisolidur 1

The new generation high accuracy UCI probe U2 is made in an ergonomic stainless steel housing with replaceable cable that connects via a Lemo type connector. The probe features an interchangeable tip that can be removed by the user to perform hardness measurements of gear teeth, grooves and other narrow places.

Features:

The device kit can be supplemented with special nozzles – for sheet materials, products with small-radius surfaces, shallow grooves. The instrument can be equipped with UCI probes of different testing load and configuration: a shortened version for measuring in narrow places, and also with an extended indenter, which allows users to measure hardness in the most difficult to reach places.

The device has an extensive library of pre-installed factory calibrations that allows users to easily convert measured hardness values to equivalent values across a variety of materials and international hardness scales, in full compliance with ASTM E140 and ISO 18265 standards.

The device features a 5.5-inch high resolution screen for excellent visibility and rugged protection. Built-in GPS, Wi-Fi, Bluetooth (for NOVOTEST Lab Leeb), and a 4G SIM slot ensure constant connectivity for working with protocols, cloud storage, and real-time data transfer.

Technical features

UCI U2 probe loads 1 kg (10 N), 5 kg (50 N), 10 kg (98 N)/span>
Measurement error <4% (HV5, HV10)
Scales HV, HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH, HRK, HB, HBS, HBW, HK, HR 15-N, HR 30-N, HR 45-N, HR 15-T, HR 30-T, HR 45-T, HR-15W, HS, HLD, Rm, Knoop, Tensile strength Rm/MPa
Materials Pre-calibrated for non-austenitic steel, nickel and high-nickel alloys, cartridge brass, copper no. 102 to 142 inclusive, alloyed white irons, wrought aluminum products, steel (unalloyed, low alloy and cast), steel (quenched tempered condition), steel (untreated, soft annealed or normalized conditions), steel (quenched condition), cold working steels, high speed steels, X110MoCo9.8, hardmetals, aluminium and its alloys. *Additional custom scales and materials for calibration
Measuring direction Any direction 360°
Display Touch screen 5.5", 720x1280, IPS LTPS
Camera 13MP
Connectivity WWAN (2G/3G/4G, VoLTE), WLAN/Wi-Fi, Bluetooth, GPS, USB type C
Body Explosion-proof industrial design, IP65 (IP67 optional) dust and water protection (IEC 60529)
Memory 4GB RAM + 64GB ROM Memory
Languages English, Ukrainian, Russian. *Additional languages available by request
Power supply / Charging Built-in battery 5100mA/h (Lithium Polymer) / USB 5V/2А
Batteries life 12 hours
Operating environment Temperature: -20°C ~ 50°C, Humidity: <95% R.H. at 35°С
Dimensions and weight 160х84x17.5 mm / 0.3 kg

Wireless hardness testers Lab UCI and Lab UCI Pro

Wireless hardness tester Lab UCI, portable hardness testers
imm port uci labpro 1

Wireless hardness tester Lab UCI implements the ultrasonic UCI (Ultrasonic Contact Impedance) method. Connect the device to the NOVOTEST Lab application to transform it into a versatile tool with unmatched functionality.

It can create graphs, histograms, and statistics effortlessly; save measurements with comprehensive protocols including text, audio, photos, and videos; easily transfer test reports with a single click via email or via your preferred messenger, and synchronize your archives with cloud storage.

Compared to the previous device version, the repeatability of results is improved, with reduced influence from the operator and measurement technique. There is no need to hold the probe with the applied main load, the device allows to fix the frequency at the right moment.

The display allows users to do measurements not only in NOVOTEST Lab, but also without a smartphone. This makes hardness testing quick and easy. The ergonomic design ensures a comfortable grip, and is suitable for both right- and left-handed users.

Features:

• Ultra-portable device for quick hardness testing anywhere – in laboratories or in field conditions, with autonomous continuous operation up to 10 hours.
• UCI hardness test method has almost no boundaries in relation to the test object, so this method is the most versatile of the existing ones.
• Special nozzles for measurements on flat and radius surfaces. The device can also be used without a nozzle for narrow and hard-to-reach places.
• Preset calibrations for steel, aluminum and brass. If necessary, it can be calibrated for any metal-scale combination.
• Multifunctional application with a user-friendly interface and cloud archive.
• The device connects with your smartphone through the NOVOTEST application downloadable from Google Play.

Technical features

LAB UCI LAB UCI PRO
UCI probe loads 1 kg (10 N), 5 kg (50 N), 10 kg (98 N)
Measurement range Vickers HV: 240~940, Rockwell HRC: 20~70, Brinell HB: 90~650, Tensile strength, MPa 370~1740 HV 10–1999 (9999), HB 76–618, HRB 41–105, HRC 20,3–68, HRE 70–108,5, HRF 82,6–115,1, HRA 60,7–85,6, HRD 40,3–76,9, HR45N 19,9–75,4, Knoop HK 87–920, Shore HS 34,2–97,3, Tensile strength MPa 255–2180
Measurement accuracy ±15HV, ±2HRC, ±10HB
Measurement error <4% (HV5, HV10)
Scales HRC, HB, HV, HRA, HRB, MPa HV, HB, HRB, HRC, HRE, HRF, HRA, HRD, HR45N, Knoop, Shore, Tensile strength MPa
Materials Pre-calibrated for steel, brass, aluminum. *Additional custom scales and materials for calibration Pre-calibrated for non-austenitic steels, nickel, brass, stainless steel, copper, alloyed white irons, aluminum
Measuring direction Any direction 360°
Data storage NOVOTEST Lab App – limited only by the memory of the Android gadgets
Cloud storage – limited only by the memory of the Cloud storage
Data transfer Wireless connection with Android smartphones, tablets, etc.: - NOVOTEST Lab App / PC: - Web interface
Languages English, Ukrainian, Russian, Spanish. *Additional languages available by request
Power supply / Charging Built-in battery / USB 5V
Batteries life 10 hours
Operating environment Temperature: -30°C ~ 60°C, Humidity: <95% R.H. at 35°С
Dimensions and weight 160x26 mm (36 mm with nozzle) / 0.165 kg 160x40 mm / 0.18 kg

The NOVOTEST Lab application allows users to:

• Set up and calibrate the device.
• Get illustrations of measurements as graphs, histograms, and statistics.
• Save measurements with text-, audio-, photo- and even videos protocols.
• Transfer the protocol in one click by any convenient messenger or e-mail.
• Synchronize archive with cloud storage.

Standard supply:

• Hardness tester
• Special nozzles
• Software
• USB cable
• Case
• Operating manual

Optional accessories:

• Hardness test blocks
• UCI probe test stand for thin sheets
• Portable grinding machine
